Number of wheels
6
Required pillar height
160 cm
Frame material
Aluminium
Recommended number of persons for assembly
2
Width between pillars
474 cm
Thickness of the blades
1.2 mm
Width
504.8 cm
Warranty
2 an(s)
Stud thickness
1.5 mm
Exists by beating
No
Number of wheels
6
Required pillar height
160 cm
Frame material
Aluminium
Recommended number of persons for assembly
2
Width between pillars
474 cm
Thickness of the blades
1.2 mm
Width
504.8 cm
Warranty
2 an(s)
Stud thickness
1.5 mm
Exists by beating
No
Supplied accessories
Yes
Assembly instructions
Yes
Sleeper thickness
1.2 mm
Sleeper Section
70*30 mm
Type of lock
5 keys
Blade width
--
Amounts Section
78*47 mm
RAL
7016
Operating clearance
26 mm
Assembly time
8 h
Pattern / Design
--
Type of filling
openworked
Color
Charcoal grey
Compatible motorization type
Sliding
Eligibility Extended warranty 5 years
No
Required discharge length
5 m
Length of the tail of the sliding gate
--
Stud/rail assembly
Self-drilling screws
Opening system
Sliding
Guide system
Upper guide with 6 nylon olives
Finishing
Sand mat
Rod assembly
Self-drilling screws
Compatible engines
Yes
Main material
Aluminium
Handle colour
Black
Handle material
Aluminium
Height
149 cm
Length of steel rail
10 m
Eligibility Extension of warranty 10 years
No
Opening direction
left to right / right to left
Locking system
Barrel lock
Discover our VEYMONT aluminum sliding gate with an exceptional design and unique style thanks to its mix of slats of various sizes for unparalleled originality.
Thanks to its length of 5 meters, it is perfectly suited to large entrances, guaranteeing easy access and secure parking for your vehicles.
The VEYMONT sliding gate is an ideal model for areas exposed to wind. Indeed, its openwork design promotes air circulation and thus reduces its wind resistance.
Its spaced slats allow you to gain visibility and let natural light through to illuminate your entrance, while protecting you from prying eyes and guaranteeing you security.
Designed in aluminum, a material known for its lightness, the VEYMONT sliding gate is easy to assemble and install.
Its resistance to corrosion guarantees exceptional durability, while its powder-coated finish not only gives it a long-lasting aesthetic but also makes it easier to maintain.
Choose the VEYMONT XL sliding gate with its unusual design and make your entrance a unique space that perfectly combines elegance and modernity
Description: Designer sliding gate, 1 leaf
Material: Aluminum
Color: Anthracite gray RAL 7016
Dimensions: Width 505 cm x Height 147 cm
Total width required with clearance: 1,010 cm
Minimum height of pillars: 160 cm
This VEYMONT 400x160cm sliding gate kit to assemble and install by yourself contains:
- 12 powder-coated aluminum slats (Width 15.5 cm)
- 14 powder-coated aluminum slats (Width 10 cm)
- 1 upper guide composed of 4 nylon rollers
- 9.48m steel guide rail
- 4 steel rollers
- 1 strike plate reception
- 1 reception stop
- 1 barrel lock
- 1 Handle (Black color)
- 5 keys
- Finishing caps

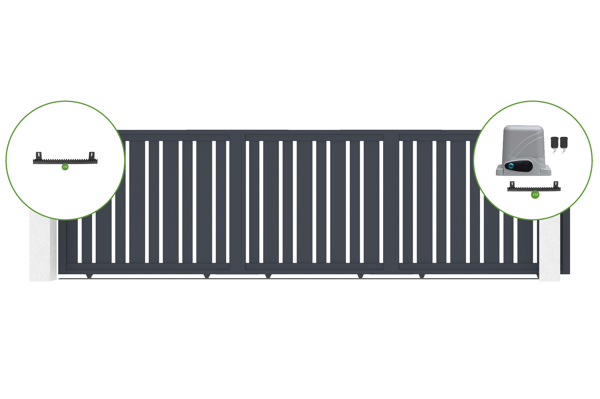

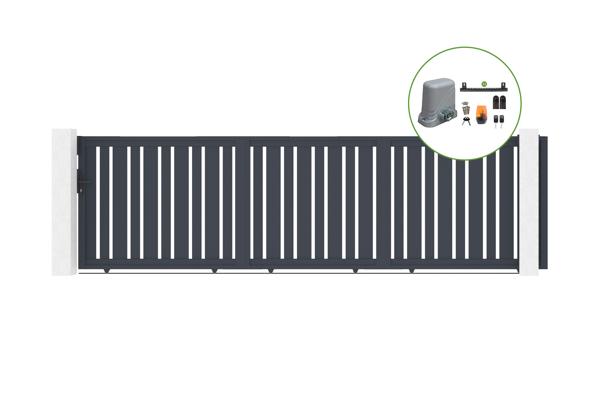

If you want to motorize your sliding gate, promotional packs are available under this product sheet.
The posts are not included in our kits because they are not essential for the installation of your sliding gate in the event that your exterior already has pillars/posts.
To ensure a safe and stable installation of the sliding gate, the posts must have a minimum height of 160 cm and a width of at least 20 cm, due to the dimensions of the upper guide which measures 15 cm wide.
If your installation requires pillars, we offer promotional packs including an aluminum sliding gate of your choice, accompanied by two aluminum posts adapted to the chosen entrance gate.
The VEYMONT XL model is also available in other dimensions. Also available in swing and gate versions.
Gate delivered in kit form.
Clear instructions, quick and easy assembly.
Find all the necessary information about this product in the Technical specifications
It is technically possible to assemble your gate with an opening from right to left.
Our assembly instructions for sliding gates have been designed to offer you two different installation options depending on the chosen opening direction: from left to right or from right to left. (finishing strip on the outside)
For any further information, please contact our customer service via our contact form.
Welcome to Casanoov!
Specializing in the online sale of equipment dedicated to the home environment, Casanoov makes it a point of honor to offer you a complete offer to delimit your exterior according to the latest market trends at affordable prices. Ultra competitive prices.
Quality at the right price! This is Casanoov's motto.
Discover our wide range of aluminum swing gates, sliding gates, gates and fences, the latest trend in terms of material.
All our products have been thought out and designed in kit form.
Easy and quick to install, assembling your Casanoov gates and fences yourself will be child's play.
All our models have been designed to combine both safety and aesthetics.
Casanoov offers you offers the choice to meet all your desires and requirements: classic models with full filling, semi-perforated, perforated or ultra perforated (barred) or more modern with our design models. At Casanoov, everything is done to satisfy you!
Our design models are inspired and designed in France, they are available in 6 variations and each has unique decorative plates, designed by us for you.
Choose the range that best suits you for a modern exterior that suits you.
And for an even more modern exterior, think about automating your entrance and browse our category of motorization which offers you automations for swing and sliding gates adapted to your needs.
Also discover all our accessories for a harmonious exterior, such as our aluminum posts in colors matching our gates, gates and garden fences.
To make your choice easier, you have all the technical information as well as visuals in situation on all of our product sheets.
Payments are secure and delivery is free. Enjoy and happy shopping!
Download the assembly instructions (PDF)
