BUNKER B500 swing gate motorization

SKU : STW-000079

Articulated arm automation (24V)
Gate weight up to 500kg
Numerous operating modes
For aluminum, wood, PVC, and iron gates

Guarantee: 2 years

In stock

Technical data

Recommended number of persons for assembly

Maximum weight per fan

250 kg

External battery compatible

Yes

Arm speed in centimeters per second

1.5cm/s

Engine rain protection

IP55

Assembly time

4 h

Maximum opening angle

110 °

Housing size

29.5*20*18 cm

Opening time

15 seconds

Minimum opening angle

90 °

Recommended number of persons for assembly

Maximum weight per fan

250 kg

External battery compatible

Yes

Arm speed in centimeters per second

1.5cm/s

Engine rain protection

IP55

Assembly time

4 h

Maximum opening angle

110 °

Housing size

29.5*20*18 cm

Opening time

15 seconds

Minimum opening angle

90 °

Keyboard compatible

Yes

Photocell Compatible

Yes

Power

24 V

Maximum thrust

6500 Nm

Adjustment of the opening and closing speed

Yes

Partial pedestrian opening

Yes

LED flashing light included

Yes

Operating temperature

-45 ° C à +50 ° C

Nominal operating thrust

6300 Nm

Supply voltage

230VAC +/- 10%

Manual release

Yes

Maximum size per fan

3 m

Flashing light compatible

Yes

Mounting accessories included

Yes

Gross weight

29.7 kg

Maximum number of associable remote controls

120

Central gate stop included

Yes

Pole mounting brackets included

Yes

Amperage

10 A

Compatible for portals

Aluminum, pvc, wood, iron

Infrared photocells included x2

Yes

Co-ownership mode

Yes

Automatically programmable closing after opening

Yes

Type of mechanism

Articulated arms

Obstacle detection

Yes

Key lock compatible

Yes

Length of open arm

97.2 cm

Eligibility Extension of warranty 10 years

Number of remote control keys

Eligibility Extended warranty 5 years

Gate mounting brackets included

Yes

Electronic cabinet with electronic board

Includes

Gradual opening / closing

Yes

Arm rotation speed in revolutions per minute

54 RPM tr/min

Screws included

Yes

Length of the closed arm

59.7 cm

Warranty

2 an(s)

Power consumption

160 W

Number of remote controls included

Gate weight up to

500 kg

Assembly instructions

Yes

Weight of package No.1

29.7 kg

Description

Articulated arm automation (24V)
Gate weight up to 500kg
Numerous operating modes
For aluminum, wood, PVC, and iron gates

The BUNKER B500 articulated arm operator is ideal for motorizing swing gates up to 6 meters long and weighing up to 500 kg (i.e., 3 meters and 250 kg maximum per leaf).

Specially designed for swing gates, this articulated arm operator will allow you to motorize any type of swing gate, whether new or existing, made of iron, aluminum, PVC, or wood.

Comprising two motorized, articulated arms, each designed to motorize one leaf of your gate, the BUNKER B500 operator offers the unique advantage of achieving a natural movement, very close to manual opening thanks to its articulated arm mechanism.

Comes with clear and detailed installation instructions, you can motorize your gate quickly and easily! Our installation instructions have been designed to guide you step by step through the proper operation of your automation system, using clear instructions accompanied by illustrations to facilitate your understanding.

If you need assistance or encounter any difficulties, our Casanoov technical team is here to assist you.

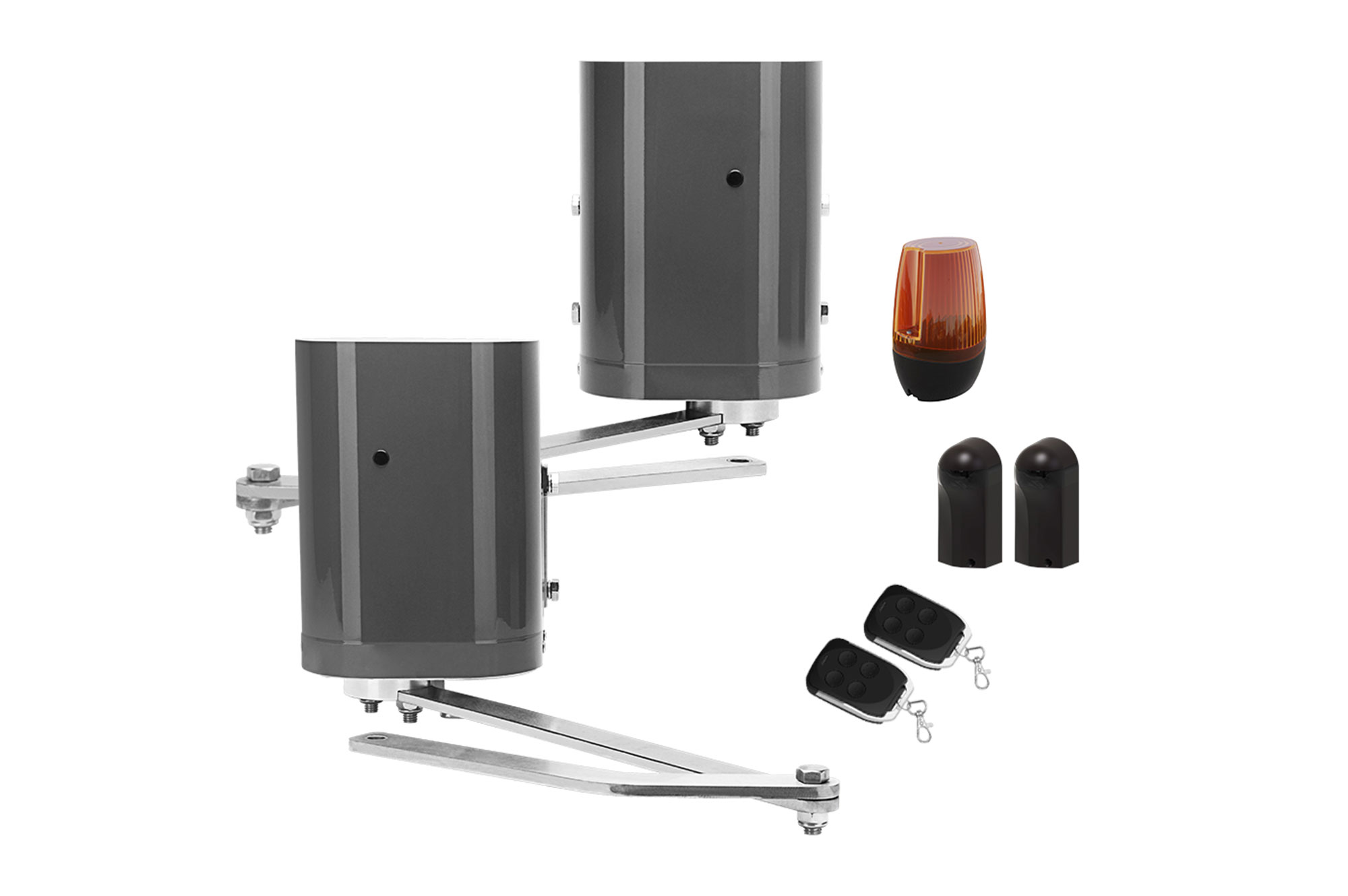

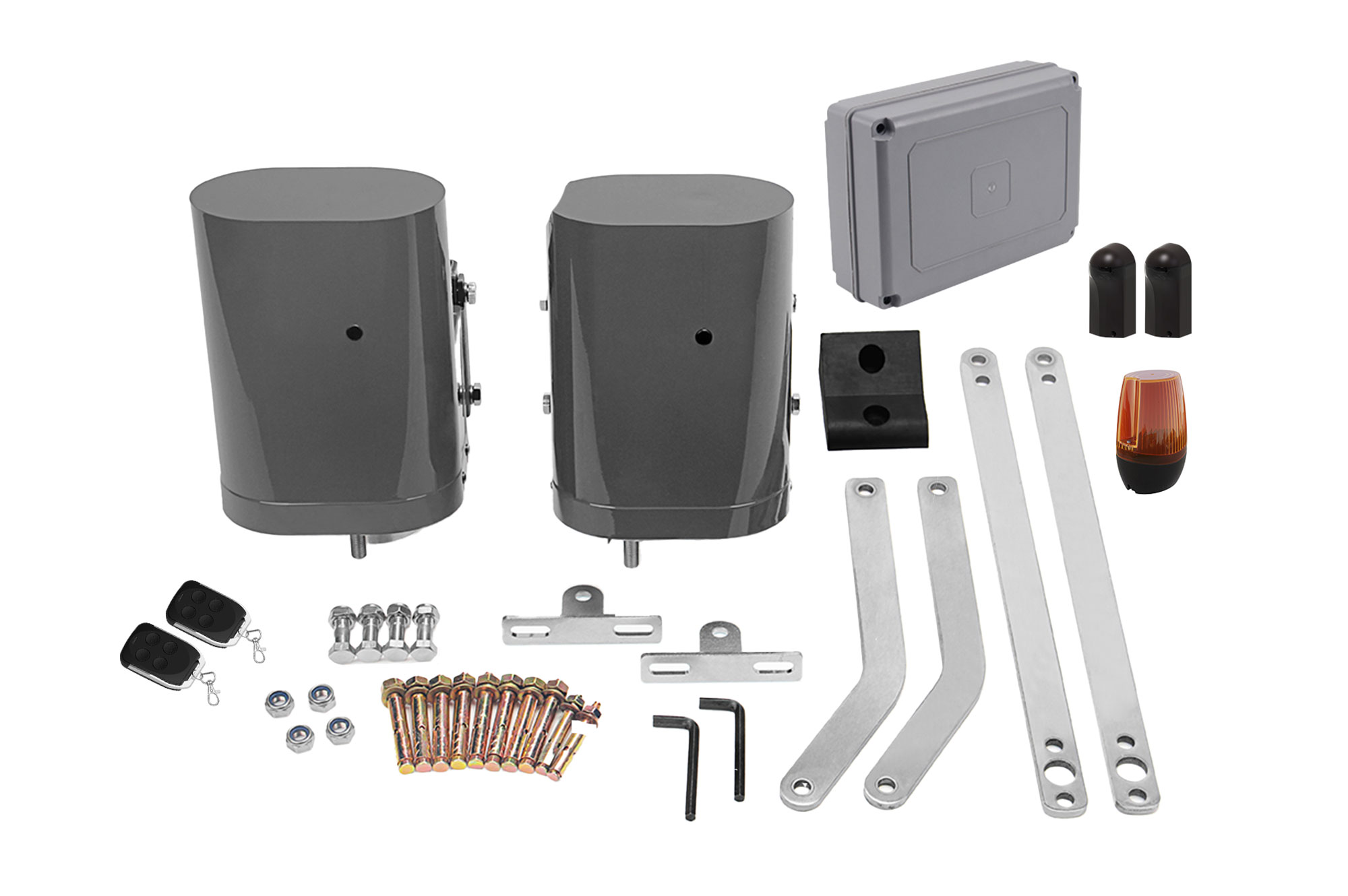

This motorization kit includes:

- 2 motors with an electrical voltage of 24 Volts/160 Watts
- A central gate stop
This stop is to be used if you have a tilting stop for a manual gate.
When you motorize your swing gate, you must ensure that the central stop does not hold it back.

Your motorization will lock and secure your swing gate. - 2 pairs of articulated arms
- 2 4-button remote controls with protective cover (Batteries included)
- 1 LED flashing light
- 1 pair of photocells
- Screws for mounting on posts/pillars

Accessories not included with the BUNKER B500 motor:

Screws for attaching the motor to the gate.
These screws must be adapted to each gate type and chosen according to the thickness of your gate.
For Casanoov swing gates, we recommend attaching your motor arms with Rivkle blind rivets between 8 and 12 mm long. The mounting bracket must be positioned on the reinforced slats provided for this purpose on all our swing gates and wickets.

BUNKER B500 Features:

- Inward and outward opening
- Opening angle between 90° and 110°
- The opening angle is determined by your installation requirements. (You will find all the installation instructions in the instructions, which can be downloaded freely from the product page)
- Manual motor release in the event of a power outage
- Arm opening speed: 1.5 cm/second
- Maximum operating time: 5 minutes
- Internal rotation speed: 54 RPM (Revolutions per minute)
- Opening performance can vary using the soft opening and closing mode
- The opening and closing speed, as well as the drive power, can be adjusted to 20 different positions
- After opening, the gate can close automatically according to your chosen time interval, ranging from 0 to 99 seconds
- Pedestrian mode: You can choose to open only one of the two leaves
- Rain protection class: IP 55
- Weight of each motor: 29.7 kg
- Operating temperature: -45°C to +50°C
- Thrust force: 6300 N at 6500N
- Electrical connection power between your home and the motor: 220VAC ±10%
- Auto-stop function: If your gate encounters an obstacle, the gate automatically stops opening or closing.

You can add external accessories with a 24V operating power, such as a backup battery, magnetic or electric lock, or push button.

This swing gate motorization kit is delivered as a kit.
Clear instructions, quick and easy installation.
Find all the necessary information about this product in the technical specifications.

If you have any difficulties or questions during the installation of your automatic gate system, our Casanoov technical team is here to assist you!
