Eligibility Extended warranty 5 years
No
Stud/rail assembly
Self-drilling screws
Locking system
Cylinder lock
Pivoting system
Ball bearing
Blade section
155*15 mm
Operating clearance
30 mm
Amounts Section
78*47 mm
Pattern / Design
HALTI
Warranty
2 an(s)
Assembly time
8 h
Eligibility Extended warranty 5 years
No
Stud/rail assembly
Self-drilling screws
Locking system
Cylinder lock
Pivoting system
Ball bearing
Blade section
155*15 mm
Operating clearance
30 mm
Amounts Section
78*47 mm
Pattern / Design
HALTI
Warranty
2 an(s)
Assembly time
8 h
Thickness of the blades
1.2 mm
Type of lock
4 Keys
Supplied accessories
Yes
Finishing
mast
RAL
7016
Sleeper Section
77*30 mm
Stud thickness
1.4 mm
Rod assembly
Self-drilling screws
Available in sliding
Yes
Compatible motorization type
With articulated arms and cylinders
Opening direction
Towards the house, See Technical diagram
End stop
2
Frame material
Aluminium
Height
142.9 cm
Eligibility Extension of warranty 10 years
No
Number of lower hinges
2
Minimum pillar height
160 cm
Compatible pillar spacing
398,7 - 404,7 cm
Compatible engines
Yes
Central stop
Yes
Top cover cap
Yes
Recommended number of persons for assembly
2
Assembly instructions
Yes
Sleeper thickness
2 mm
Number of upper hinges
2
Colour
Charcoal grey
Type of filling
half openworked
Main material
Aluminium
Handle colour
Black
Wind resistance
55 km/h
Width
396.7 cm
Opening system
Swing gate
Width between pillars
401.7 cm
Handle material
Aluminium
Weight of package No.1
25.0 kg
Weight of package No.2
8.8 kg
Weight of package No.3
25.0 kg
Weight of package No.4
13.5 kg
The HALTI Driveway swing gate, with its classic design, is given a modern and unique touch by the decorative plate with the "Nature" motif which covers the entire upper part of the gate.
Description : Design double swing gate with pattern, vertical board
Material : Aluminium
Colour : Anthracite grey (RAL 7016)
Dimensions : Width 397cm x Height 143cm
Required width between pillars: 402cm
Minimum height of pillars : 160cm
Inspired and designed in France
This contemporary swing gate kit, to be assembled and installed by yourself, contains :
- 24 powder-coated aluminium slats (Width 15.5cm)
- 2 decorative aluminium plates with "Nature" motif (Thickness 20/100)
- 2 upper hinges
- 2 lower hinges
- 2 receiving stop
- 1 middle stop
- 1 cylinder lock
- 1 handle (Colour Black)
- 5 keys
- Finishing caps
- Screws and bolts
The central crosspieces of this double swing gate have been designed to be reinforced so that you can motorise it later if you wish.

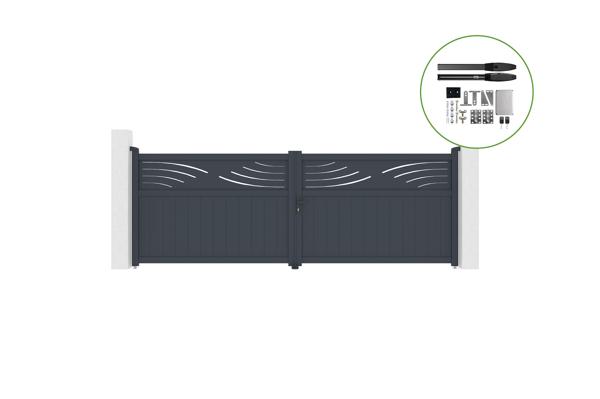

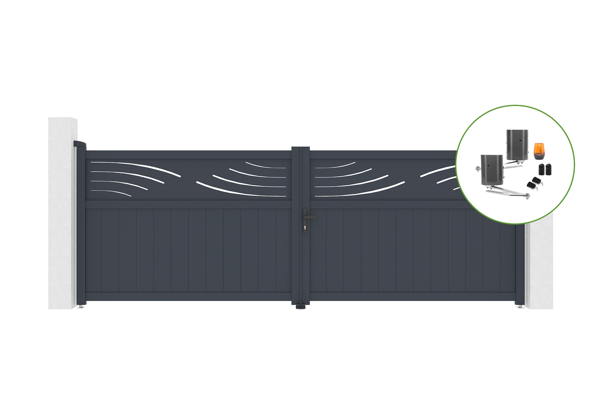

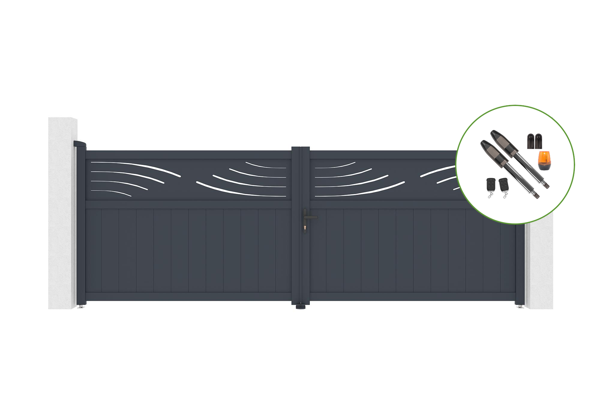

You will find promotional packs offering you a set consisting of a swing gate of your choice accompanied by the appropriate gate automation.

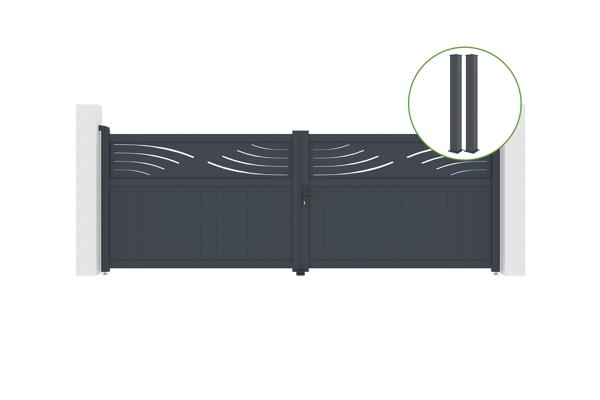

If your installation requires pillars, Casanoov offers promotional packages in the "Swing Gate" category
These packages contain one aluminium swing gate of your choice, together with two aluminium posts to match the chosen dual swing gate.
The HALTI model is also available in other sizes.
Also available as a pedestrian or sliding gate
Driveway Gate delivered in kit form
Clear instructions, quick and easy assembly
You will find all the necessary information about this product in the technical data
Download the assembly instructions (PDF)
