Eligibility Extension of warranty 10 years
No
Rod assembly
Self-drilling screws
Handle material
Aluminium
Stud/rail assembly
Self-drilling screws
RAL
7016
Compatible engines
Yes
Amounts Section
78*47 mm
Sleeper Section
77*30 mm
Blade width
--
Required pillar height
160 cm
Eligibility Extension of warranty 10 years
No
Rod assembly
Self-drilling screws
Handle material
Aluminium
Stud/rail assembly
Self-drilling screws
RAL
7016
Compatible engines
Yes
Amounts Section
78*47 mm
Sleeper Section
77*30 mm
Blade width
--
Required pillar height
160 cm
Pattern / Design
HALTI
Finishing
mast
Operating clearance
26 mm
Thickness of the blades
1.2 mm
Width
303 cm
Opening system
Sliding
Required discharge length
3 m
Sleeper thickness
2 mm
Number of wheels
4
Stud thickness
1.4 mm
Assembly instructions
Yes
Supplied accessories
Yes
Assembly time
8 h
Eligibility Extended warranty 5 years
No
Exists by beating
Yes
Length of the tail of the sliding gate
25.4 cm
Recommended number of persons for assembly
2
Length of steel rail
6 m
Height
145 cm
Type of lock
4 Keys
Compatible motorization type
sliding
Guide system
Upper guide with 4 nylon olives
Width between pillars
303 cm
Locking system
Barrel lock
Frame material
Aluminium
Handle colour
Black
Colour
Charcoal grey
Main material
Aluminium
Wind resistance
55 km/h
Type of filling
half openworked
Opening direction
left to right/right to left
Warranty
2 an(s)
Weight of package No.1
19.0 kg
Weight of package No.2
19.0 kg
Weight of package No.3
25.0 kg
Weight of package No.4
12.24 kg

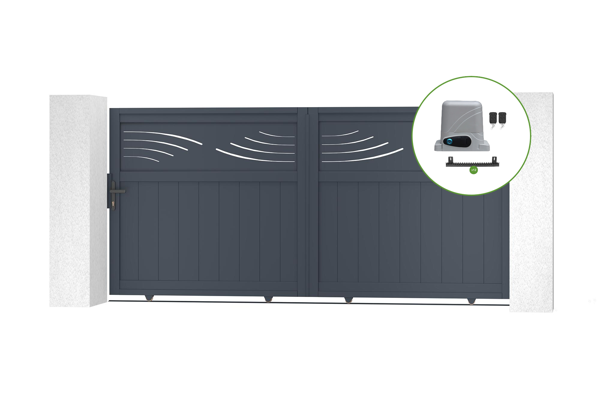

The HALTI Driveway sliding gate, with its classic design, is given a modern and unique touch by the decorative plate with the "Nature" motif which covers the entire upper part of the gate.
Description : Design sliding gate with pattern, vertical board
Material : Aluminium
Colour : Anthracite grey (RAL 7016)
Dimensions : Width 303cm x Height 145cm
Required width with clearance : 657cm
Minimum height of pillars : 160cm
Inspired and designed in France
This contemporary sliding gate kit, to be assembled and installed by yourself, contains :
- 18 powder-coated aluminium slats (Width 15.5cm)
- 2 decorative aluminium plates with "Nature" motif (Thickness 20/100)
- 1 top guide with 4 nylon wheels
- 6m aluminium guide rail
- 4 steel wheels
- 1 closes strike box
- 1 limit stop
- 1 cylinder lock
- 1 handle (Colour Black)
- 5 keys
- Finishing caps
- Screws and bolts
If you want an automatic sliding gate, you will find promotional packages consisting of a sliding gate of your choice with the appropriate sliding gate automation.
If your installation requires pillars, Casanoov offers promotional packages in the "Sliding Gate" category
These packages contain one Aluminium sliding gate of your choice, together with two aluminium posts to match the chosen dual sliding gate.
The HALTI model is also available in other sizes.
Also available as a pedestrian or double swing gate
Driveway Gate delivered in kit form
Clear instructions, quick and easy assembly
You will find all the necessary information about this product in the technical data
It is technically possible to install your gate with an opening from the right to the left.
You will find all the information you need to change the opening direction in our installation instructions.
Our installation instructions for sliding gates have been designed to offer you two different installation methods depending on the chosen opening direction: from left to right or from right to left.
For further information, please contact our customer service via our contact form.
Download the assembly instructions (PDF)
